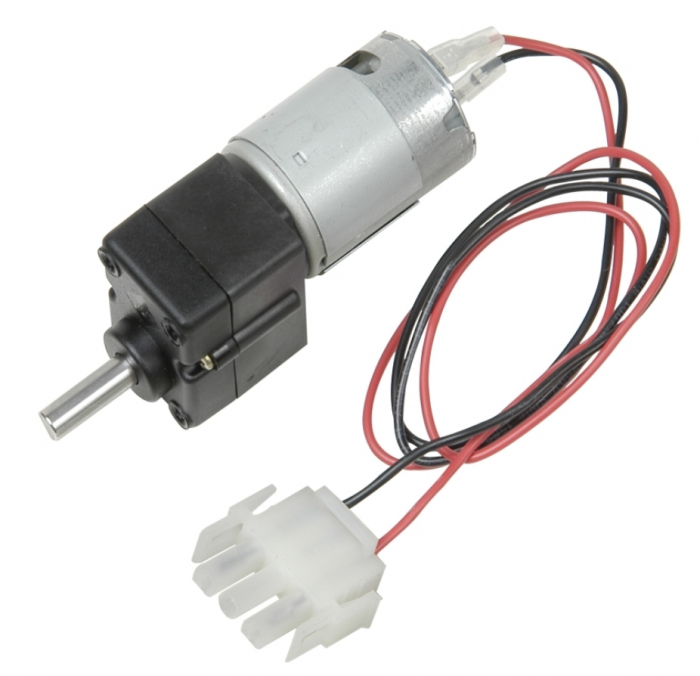

DC motor from the GMAG series with spur gear and a rated voltage of 24V. Maximum torque 5.7Nm, idle speed 55 rpm.
Additional information
| Series | GMAG |
|---|---|
| Voltage | 24v |
| Max. Torque | 5.7Nm |
| Idle | 55 rpm |
| Nominal power | 7.8W |
| Rated current | 0.3A |
| Idle current | 0.2A |
| Max. current | 2.8A |
| Hall Sensors | N |
| Reduction | 109:1 |
| Gear material | |
| Thermoswitches | N |
| Interference supression | Y |
| Gearbox | |
| Characteristic | GMAG K2 |
| Shaft | GMAG W1 |
| Electr. Connection | GMAG A1 |
