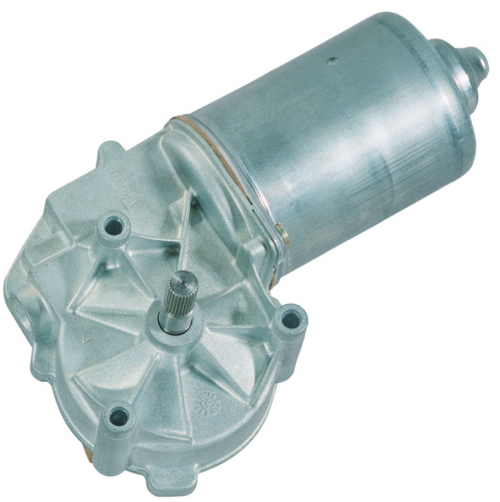

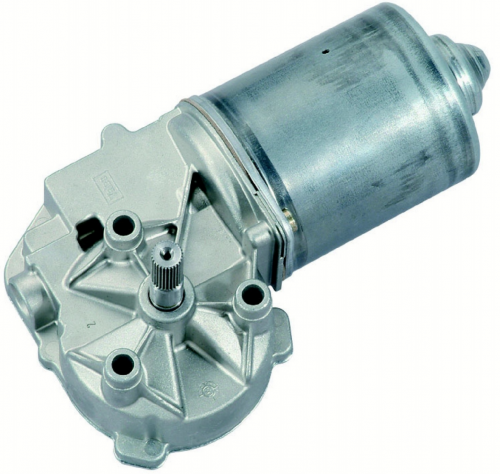

DC motor from the SWMG series with worm gear and a rated voltage of 24V. Maximum torque 100.3Nm, idle speed 165 rpm.
Nidec 403460 SWMG
Additional information
| Series | SWMG |
|---|---|
| Voltage | 24v |
| Max. Torque | 100.3Nm |
| Idle | 165 rpm |
| Rating | 285.3W |
| Rated current | 11.9A |
| Idle current | 4A |
| Max. Electricity | 103.2A |
| Hall Sensors | n |
| Reduction | 43:3 |
| Gear material | p |
| Thermoswitches | n |
| Interference supression | n |
| Gearbox | Lh |
| Characteristic | SWMG K3 |
| Shaft | SWMG W2 |
| Electr. Connection | SWMG A1 |
