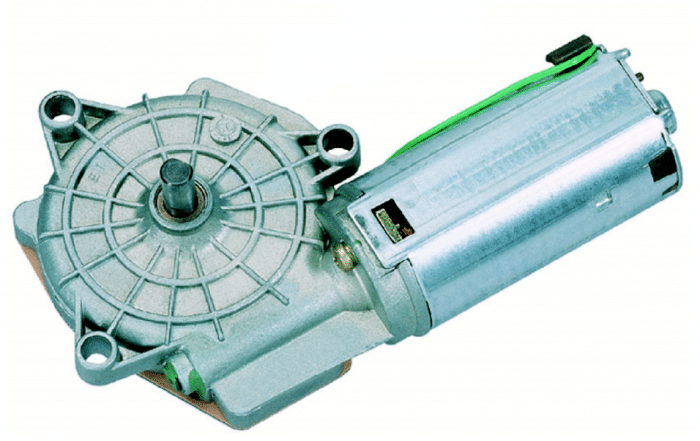

DC motor from the SWMP series with worm gear and a rated voltage of 24V. Maximum torque 17.3Nm, idle speed 54 rpm.
Additional information
| Series | SWMP |
|---|---|
| Voltage | 24v |
| Max. Torque | 17.3Nm |
| Idle speed | 54 rpm |
| Nominal power | 85W |
| Rated current | 3.5A |
| Idle current | 1.5A |
| Max. current | 16.15A |
| Hall Sensors | N |
| Reduction | 85:1 |
| Gear material | P |
| Thermoswitches | N |
| Interference supression | N |
| Gearbox | Rh |
| Characteristic | SWMP K1 |
| Shaft | SWMP W3 |
| Electr. Connection | SWMP A1 |
